Rolex Sea-Dweller 16600: The Definitive Collector's Guide

The Rolex Sea-Dweller 16600 is one of the most purposeful watches Rolex has ever produced. Designed for professional saturation divers operating at extreme depths, it incorporates a set of technical specifications that go well beyond what any standard diving watch requires. Yet despite its professional-grade engineering pedigree, the 16600 wears with a quiet authority that translates seamlessly from the ocean floor to everyday life.

For collectors, the Sea-Dweller 16600 occupies an important place in the Rolex catalogue: it is the reference that defined the modern Sea-Dweller, produced from 1988 until 2008 and fitted with a date complication but, crucially, no Cyclops magnification lens over the date window, giving it a cleaner dial profile that distinguishes it immediately from the Submariner. This guide covers everything you need to know about the reference, from its technical specifications and movement to its collector standing and what to look for when buying one.

The Origins of the Rolex Sea-Dweller: Built for Saturation Diving

To understand the Sea-Dweller 16600, it helps to understand why the Sea-Dweller exists at all. By the mid-1960s, the Rolex Submariner had established itself as the definitive professional diving watch. But as commercial deep-sea diving operations expanded, a new problem emerged: standard diving watches could not survive saturation diving.

Saturation diving involves divers living under pressure in underwater habitats or pressurised chambers for days or weeks at a time. The ambient atmosphere in these environments is enriched with helium, which is small enough to permeate the seals of a conventional watch case. During decompression, as pressure falls, the helium trapped inside the case expands rapidly and can blow the crystal off the watch.

Rolex worked with professional diving companies, most notably COMEX (Compagnie Maritime d'Expertises), to develop a solution. The result was the Sea-Dweller, first introduced in the late 1960s as reference 1665, fitted with a helium escape valve that allows helium to vent safely during decompression. The 16600, introduced in 1988, was the direct successor to the 1665 and carried this same engineering DNA forward into the modern era.

Case Specifications: 40mm, 1,220-Metre Water Resistance

The Rolex Sea-Dweller 16600 is housed in a 40mm stainless steel Oyster case, a dimension that reads as measured and proportionate on most wrists. The case construction is more substantial than the Submariner's, with a thicker caseback and more heavily reinforced water resistance architecture. The 16600 is rated to 1,220 metres (4,000 feet), four times the depth rating of the Submariner 16610 and a figure that remains impressive by any standard.

The sapphire crystal fitted to the 16600 is notably thicker than that of the Submariner, contributing to both the watch's water resistance capability and its slightly elevated profile on the wrist. The case sits higher than a Submariner, giving the Sea-Dweller a more commanding presence. This is not bulk for its own sake: every dimension of the case reflects the engineering requirements of a watch designed to function in extreme environments.

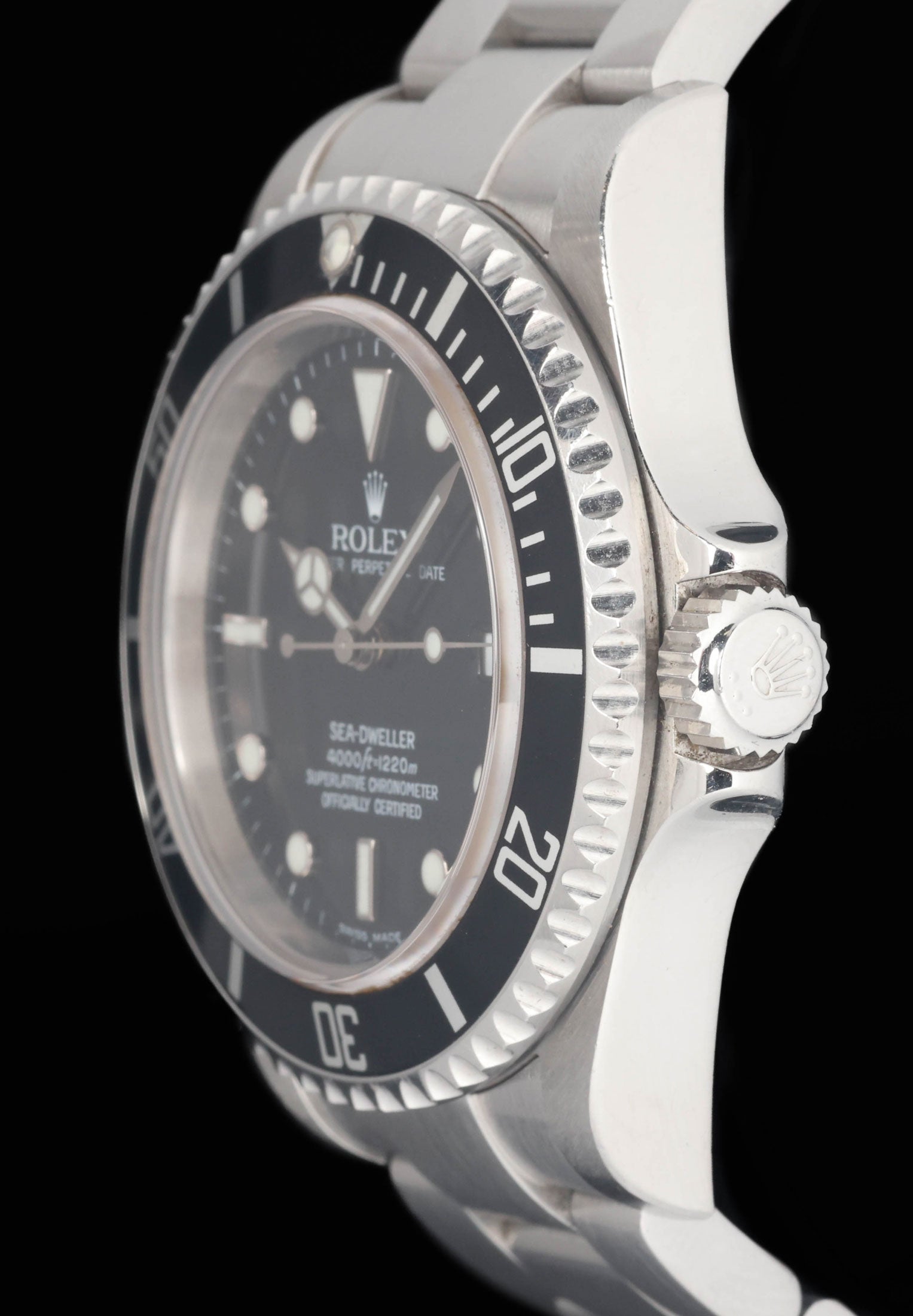

The case is fitted with a screw-down crown and Rolex's Twinlock crown system. Brushed surfaces predominate, reinforcing the tool-watch character of the reference and providing welcome resistance to everyday wear marks.

The Dial: Date Complication, No Cyclops Lens

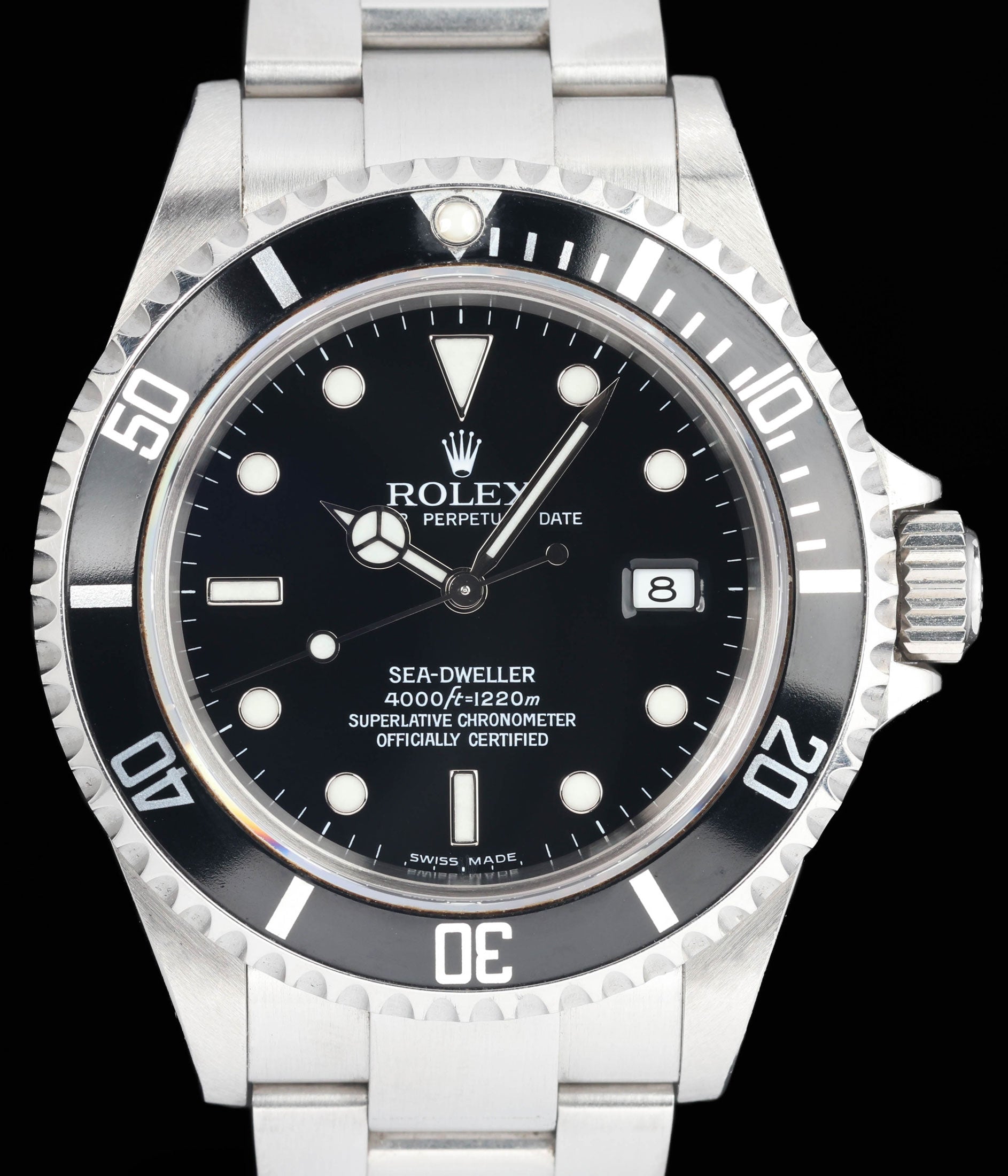

One of the most immediately striking features of the Rolex Sea-Dweller 16600 is its dial. Like the Submariner, the Sea-Dweller is fitted with a date complication. However, unlike the Submariner, the 16600 crystal carries no Cyclops magnification lens over the date window. The result is a flatter, uninterrupted crystal profile and a dial that reads more evenly across the full surface.

The absence of the date creates a dial with perfect radial symmetry. The hour indices are evenly distributed around the dial without interruption, and the overall visual effect is one of purposeful clarity. Collectors who find the date window on the Submariner asymmetric have long regarded the Sea-Dweller's dial as the more resolved of the two designs.

The 16600 dial is presented in matte black with applied luminous hour markers and the characteristic Mercedes hands. Luminous material on all 16600 examples is tritium on earlier production and Swiss T Swiss T markings give way to SWISS MADE and later lume plots as production continued through the 1990s and 2000s. The transition from tritium to LumiBrite lume occurred during production, giving collectors the option of warm-patina tritium dials on earlier examples or the brighter, longer-lasting LumiBrite on later ones.

The Unidirectional Rotating Bezel: Function Over Decoration

The Rolex Sea-Dweller 16600 is fitted with a unidirectional rotating bezel graduated with a 60-minute scale. The unidirectional action is a deliberate safety feature: the bezel can only be rotated anti-clockwise, which means that if accidentally knocked during a dive, it will move in a direction that overestimates remaining dive time rather than underestimating it.

All 16600 bezels were fitted with aluminium inserts marked with a 60-minute scale, with a luminous pip at the 12 o'clock position for easy orientation in low visibility conditions. The aluminium inserts are susceptible to fading and wear over time. On original, unrestored examples, the bezel insert develops a patina that collectors regard as part of the watch's authentic character. Replacement bezel inserts are widely available but reduce the originality value of a watch significantly.

The bezel action on the 16600 is notably firm and precise, consistent across the production run. The click mechanism engages positively at each minute graduation, and the bezel does not drift under normal conditions.

The Helium Escape Valve: Engineering for Extreme Depths

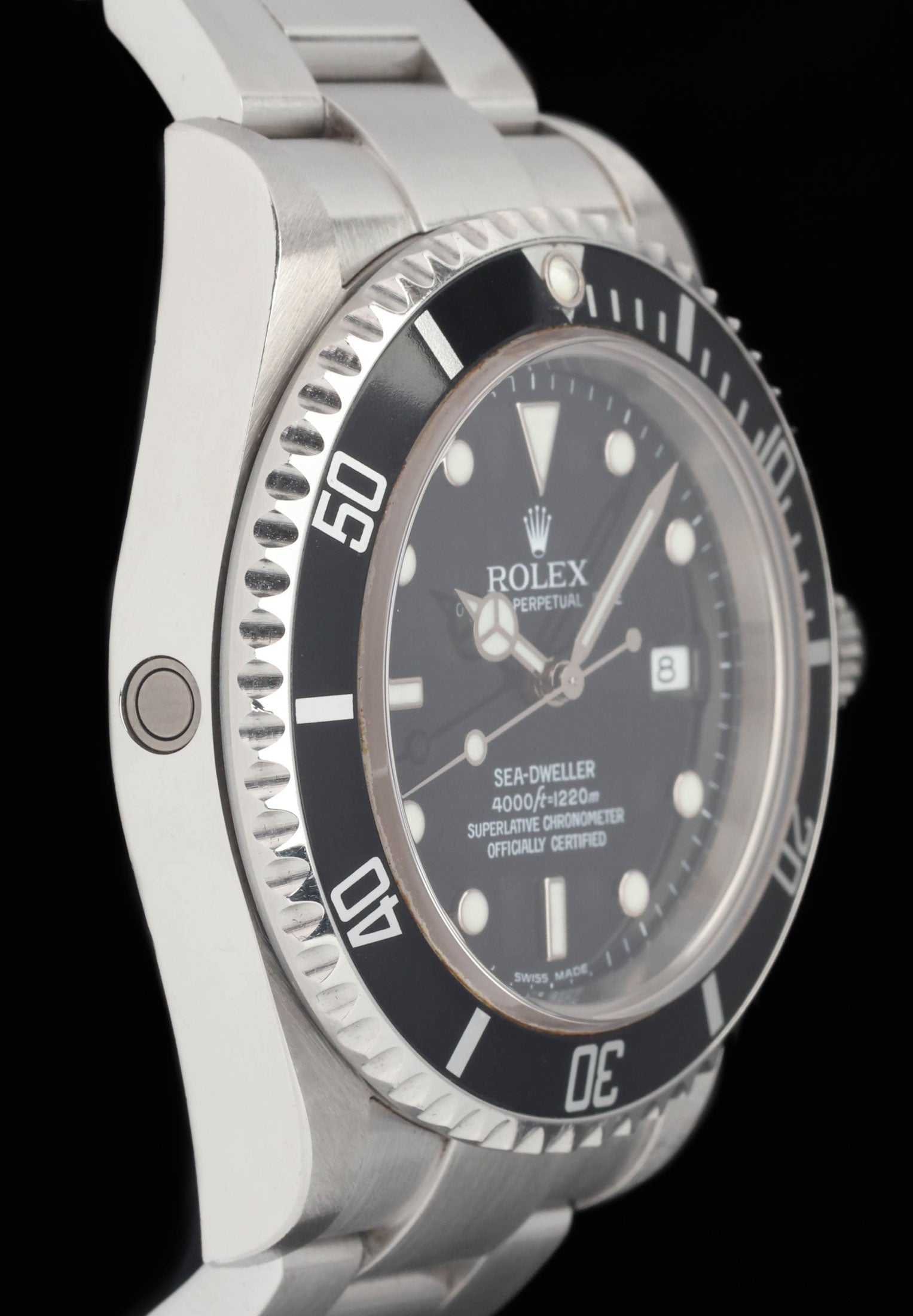

The helium escape valve is the feature that most fundamentally separates the Sea-Dweller 16600 from the Submariner and from the broader field of diving watches. Located at the 9 o'clock position on the case, the valve is a spring-loaded mechanism that opens automatically when internal case pressure exceeds ambient pressure by a set threshold.

During saturation diving operations, the helium-rich atmosphere of a pressurised habitat causes helium molecules to slowly diffuse through the seals of any watch worn by the diver. Over a saturation dive lasting days or weeks, a meaningful quantity of helium can accumulate inside the case. When the diver enters the decompression phase and ambient pressure begins to fall, the helium trapped inside expands. Without a relief mechanism, this pressure differential can be sufficient to displace the crystal.

The escape valve on the 16600 vents this excess pressure gradually and automatically, without any action required from the diver. Once the differential drops below the activation threshold, the valve closes and the watch returns to its normal sealed state. This mechanism is not marketing: it is a functional engineering solution to a real problem encountered in professional deep-sea operations, and it is one of the reasons the Sea-Dweller has remained the preferred watch of commercial saturation divers for decades.

Calibre 3135: The Movement Powering the Sea-Dweller 16600

The Rolex Sea-Dweller 16600 is powered by the Calibre 3135, Rolex's flagship self-winding mechanical movement and one of the most refined watch movements in production. Introduced in 1988, the same year as the 16600, the Calibre 3135 has remained in continuous production with incremental refinements and is widely regarded as one of the most reliable and accurate movements Rolex has ever made.

Parachrom Hairspring

The Calibre 3135 is fitted with Rolex's proprietary Parachrom hairspring, manufactured from a paramagnetic niobium-zirconium alloy. The Parachrom hairspring is highly resistant to magnetic fields and is approximately ten times more resistant to shocks than a conventional hairspring. It also offers improved stability across a range of temperatures. For a watch intended for use in professional diving environments, where shocks, temperature changes, and magnetic interference are all potential hazards, these properties are directly relevant.

Movement Performance

The Calibre 3135 operates at 28,800 vibrations per hour (8 beats per second) and has a power reserve of approximately 48 hours. The movement incorporates Rolex’s Perpetual rotor system for automatic winding, a quickset date mechanism, and Rolex’s proprietary Glucydur beryllium alloy balance wheel. The movement is certified as a Swiss chronometer, meeting the strict accuracy standards set by the COSC.

Rolex Sea-Dweller 16600 vs Submariner: Key Differences

The comparison between the Sea-Dweller 16600 and the Submariner 16610 is one of the most common discussions in vintage Rolex collecting, and understanding the differences helps clarify what the Sea-Dweller does and does not offer.

The Sea-Dweller 16600 has a depth rating of 1,220 metres versus 300 metres for the Submariner 16610. The helium escape valve is present on the Sea-Dweller and absent on the Submariner. Both references feature a date complication, but the Sea-Dweller omits the Cyclops magnification lens; the Submariner 16610 retains it. The Sea-Dweller case is thicker and sits higher on the wrist. The bezel insert material is aluminium on both references in their respective production periods.

In practical terms, the Sea-Dweller is the correct choice for anyone prioritising technical capability, a flatter crystal profile without a Cyclops lens, and a more assertive wrist presence. The Submariner offers a slightly slimmer profile and the Cyclops lens for easier date reading. Neither is objectively superior: they are designed for different users with different priorities.

Production History: 1988 to 2008

The Rolex Sea-Dweller 16600 was produced continuously from 1988 until 2008, making it one of the longer-running references in the modern Rolex catalogue. Over its production life, the reference received incremental updates including the introduction of the Parachrom hairspring in the Calibre 3135 and the transition from tritium to LumiBrite luminous material on the dial and hands.

The 16600 was replaced by the Sea-Dweller 116600 in 2014, which introduced a larger 40mm case with a ceramic bezel insert. Note that the case diameter remained nominally the same at 40mm, but the 116600 reads larger on the wrist due to the wider bezel and different lug geometry. For collectors who prefer the more restrained proportions and aluminium bezel of the original, the 16600 remains the preferred reference.

A relatively long production run of 20 years means 16600 examples are not scarce in absolute terms, but finding examples in genuinely original, unpolished condition with correct dials and untouched bezel inserts requires patience. The market rewards originality heavily at this reference.

Rolex Sea-Dweller 16600 Collector Demand and Market Value

The Rolex Sea-Dweller 16600 has developed a loyal collector following that prizes it for reasons distinct from the more broadly popular Submariner. The absence of the Cyclops lens produces a flatter, more restrained dial presentation that many collectors regard as the more resolved of the two designs. The technical differentiation provided by the helium escape valve and depth rating adds a layer of authentic history that resonates with collectors interested in the working heritage of professional tool watches.

Condition and originality are the primary value drivers, as with all vintage and transitional-era Rolex references. The most desirable 16600 examples are those in unpolished condition with original bezel inserts showing natural wear, tritium dials with even patina on earlier examples, and original bracelets with appropriate stretch and clasp wear consistent with the watch's age. Artificially pristine examples that have been polished, had dials cleaned, or received replacement parts are valued considerably less by informed buyers.

Serial number research is straightforward for this reference: the 16600 spans a wide range of serial numbers from the late 1980s through to the mid-2000s, and production dating by serial number is well-documented in collector literature. Buyers should verify that dial configuration, lume type, and bracelet references are consistent with the stated production period.

Why the Rolex Sea-Dweller 16600 Remains a Compelling Acquisition

The Rolex Sea-Dweller 16600 makes a strong case for itself on multiple grounds. As a watch to be worn, it offers the full practical capability of a professional diving instrument: genuine water resistance to 1,220 metres, a reliable and accurate movement, and a robust construction that requires no special treatment in daily use. The 40mm case size works well on a wide range of wrist sizes, and the absence of a date complication means there is nothing to set and nothing to go wrong.

As a collector piece, the 16600 occupies a considered position in the Rolex hierarchy. It is priced below the more aggressively collected Submariner in many configurations, yet it offers technical differentiation that serious collectors understand and value. The 20-year production run provides sufficient supply to make purchasing one realistic, while the growing recognition of the Cyclops-free dial’s cleaner aesthetic continues to drive demand among collectors who prefer a less visually interrupted dial.

For anyone drawn to professional Rolex diving watches, the Sea-Dweller 16600 rewards close attention. It is a watch that has been genuinely used in some of the most demanding environments on earth, and it shows no sign of going out of fashion.

Frequently Asked Questions: Rolex Sea-Dweller 16600

What years was the Rolex Sea-Dweller 16600 produced?

The reference 16600 was produced from 1988 until 2008, when it was eventually replaced by the Sea-Dweller 116600 introduced in 2014.

What is the water resistance of the Sea-Dweller 16600?

The 16600 is rated to 1,220 metres (4,000 feet), four times the depth rating of the contemporary Submariner 16610.

What movement does the Rolex Sea-Dweller 16600 use?

The 16600 is powered by the Calibre 3135, a self-winding mechanical movement with a Parachrom hairspring, 28,800 vph beat rate, and approximately 48 hours of power reserve. It is certified as a Swiss chronometer by the COSC.

Why does the Sea-Dweller 16600 have a helium escape valve?

The helium escape valve allows helium gas, which accumulates inside the case during saturation diving operations, to vent safely during decompression. Without it, the expanding gas could displace the crystal as ambient pressure falls during the ascent phase.

Does the Rolex Sea-Dweller 16600 have a date complication?

Yes, the Sea-Dweller 16600 does have a date complication, driven by the Calibre 3135. However, unlike the Submariner, it does not feature a Cyclops magnification lens on the crystal over the date window. The crystal sits flat, giving the watch a lower, cleaner profile when viewed from the side.

How does the Sea-Dweller 16600 compare to the Submariner 16610?

The Sea-Dweller 16600 has a significantly higher depth rating (1,220m vs 300m), a helium escape valve, a thicker case, and a higher wrist profile. Both watches have a date complication, but the Sea-Dweller omits the Cyclops lens. The Submariner 16610 is slimmer, retains the Cyclops, and is generally priced higher due to broader market demand.

What should I look for when buying a Sea-Dweller 16600?

Prioritise unpolished cases, original bezel inserts with natural wear, dials in original condition without cleaning or refinishing, and bracelets with appropriate age-consistent stretch. Verify that lume type and dial markings are consistent with the serial number's production period.

• Case & bracelet in excellent condition.
• Case unpolished
• Light hairlines visible

• Dial & hands flawless
