Rolex Cosmograph Daytona 16520 Zenith White Dial 40MM 1999

A Borrowed Heartbeat: The 1999 Rolex Daytona 16520 ‘Zenith’ White Dial

This white dial Cosmograph Daytona 16520 was made in 1999, in the final stretch of the twelve years when Rolex’s most famous chronograph ran on a movement that started life as Zenith’s El Primero. A year later the Daytona went fully in house, and the arrangement that gave this reference its nickname came to an end.

Rolex Before the Daytona

Rolex began in London in 1905 as Wilsdorf & Davis, founded by Hans Wilsdorf and his brother-in-law Alfred Davis. Wilsdorf registered the Rolex name in 1908 and moved the business to Geneva in 1919. The Oyster case followed in 1926 as the first waterproof wristwatch case, and the Perpetual rotor arrived in 1931. Those two ideas, a sealed case and automatic winding, explain almost everything about the 16520, because it was the first Daytona to combine them.

From Daytona Beach to the Cosmograph

Rolex became the official timekeeper of the Daytona International Speedway in 1962, and the following year introduced the Cosmograph reference 6239. The name nods to Daytona Beach in Florida, where motor racing had flourished since the early twentieth century. The 6239 brought an engraved tachymeter scale to the bezel and set the dial and subdials in contrasting colours, a layout that still defines the model.

The manual wind years

Early Daytonas used hand wound Valjoux calibres, first the 722 and later the 727. In 1971 the references 6263 and 6265 adopted screw down pushers permanently, bringing the chronograph properly into the Oyster family. What those watches could not do was wind themselves, and by the 1980s that had become the gap Rolex needed to close.

1988: The Zenith Solution

Rolex answered in 1988 with the reference 16520, the first automatic Daytona. Rather than build a self winding chronograph from scratch, it turned to the Zenith El Primero, a movement unveiled on 10 January 1969 as the first high frequency chronograph calibre with integrated automatic winding. Rolex took the El Primero 400 as its base and made more than 200 modifications, and the result was the calibre 4030.

What Rolex changed

The most significant change was speed. The El Primero was designed to beat at 36,000 vibrations per hour, and Rolex slowed it to 28,800, fitting a new escapement with a larger free sprung balance and a Breguet overcoil hairspring regulated by Microstella screws. The date function was removed entirely. The finished 4030 carries 31 jewels and was certified as a chronometer by the COSC, which is why 16520 dials carry the Superlative Chronometer designation.

A Larger, Tougher Case

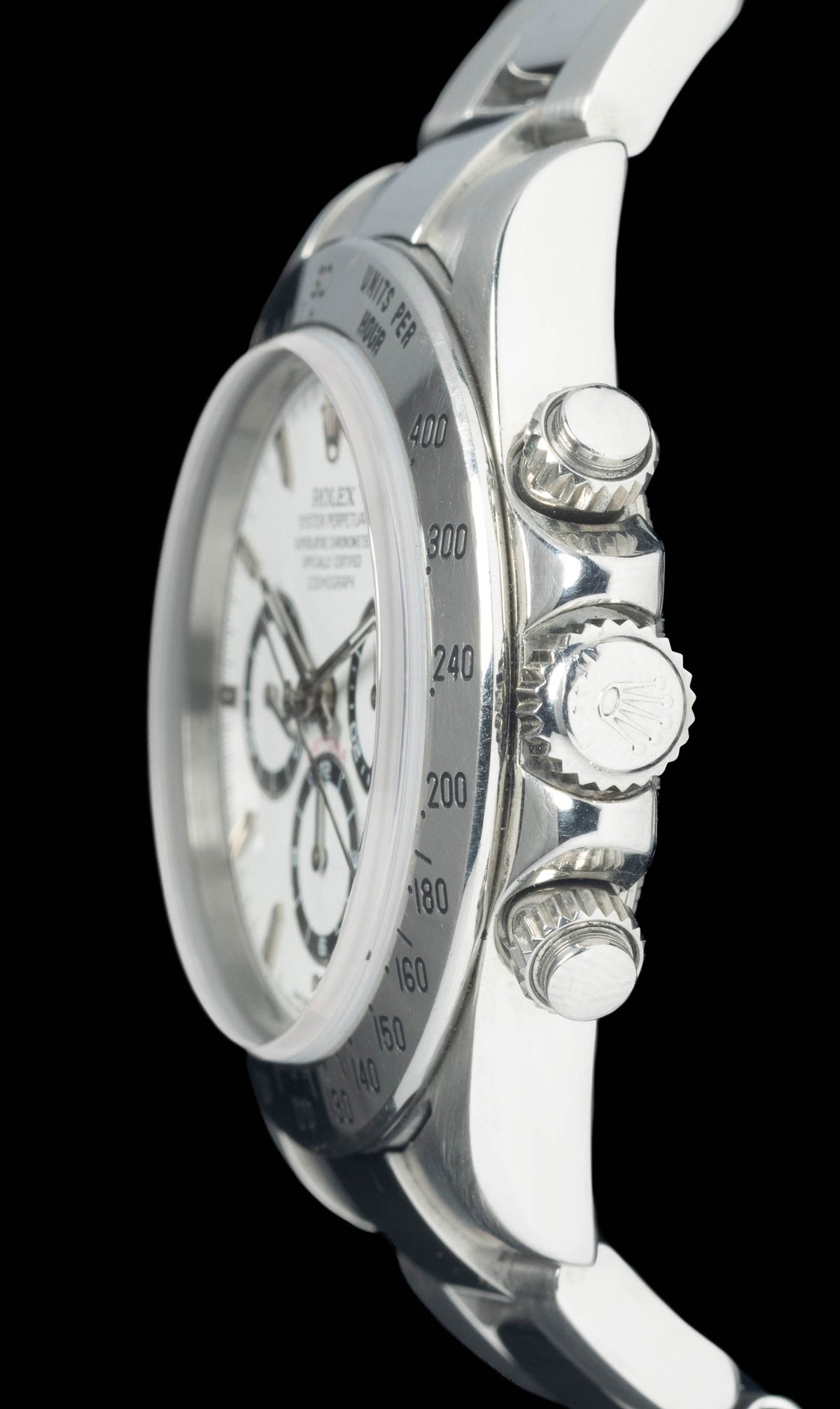

The 16520 also reshaped the Daytona itself. The case grew to 40mm, gained crown guards for the first time, and received a sapphire crystal in place of acrylic. It carries a Triplock winding crown alongside the screw down pushers, and at 12.6mm tall it wears with the same steel tachymeter bezel that has framed every Cosmograph since 1963. The result is recognisably the Daytona of the 1960s, rebuilt for daily wear.

Where 1999 Sits in the Run

Rolex adjusted the 16520 dial several times over its production. The earliest examples are known for details such as an inverted six on the hour counter, and later dials settled into bolder subdial numerals. In 1999 Rolex began moving 16520 dials from tritium to LumiNova, marking them SWISS at six o’clock rather than the earlier T SWISS T. It was one of the last changes made to the reference before its replacement.

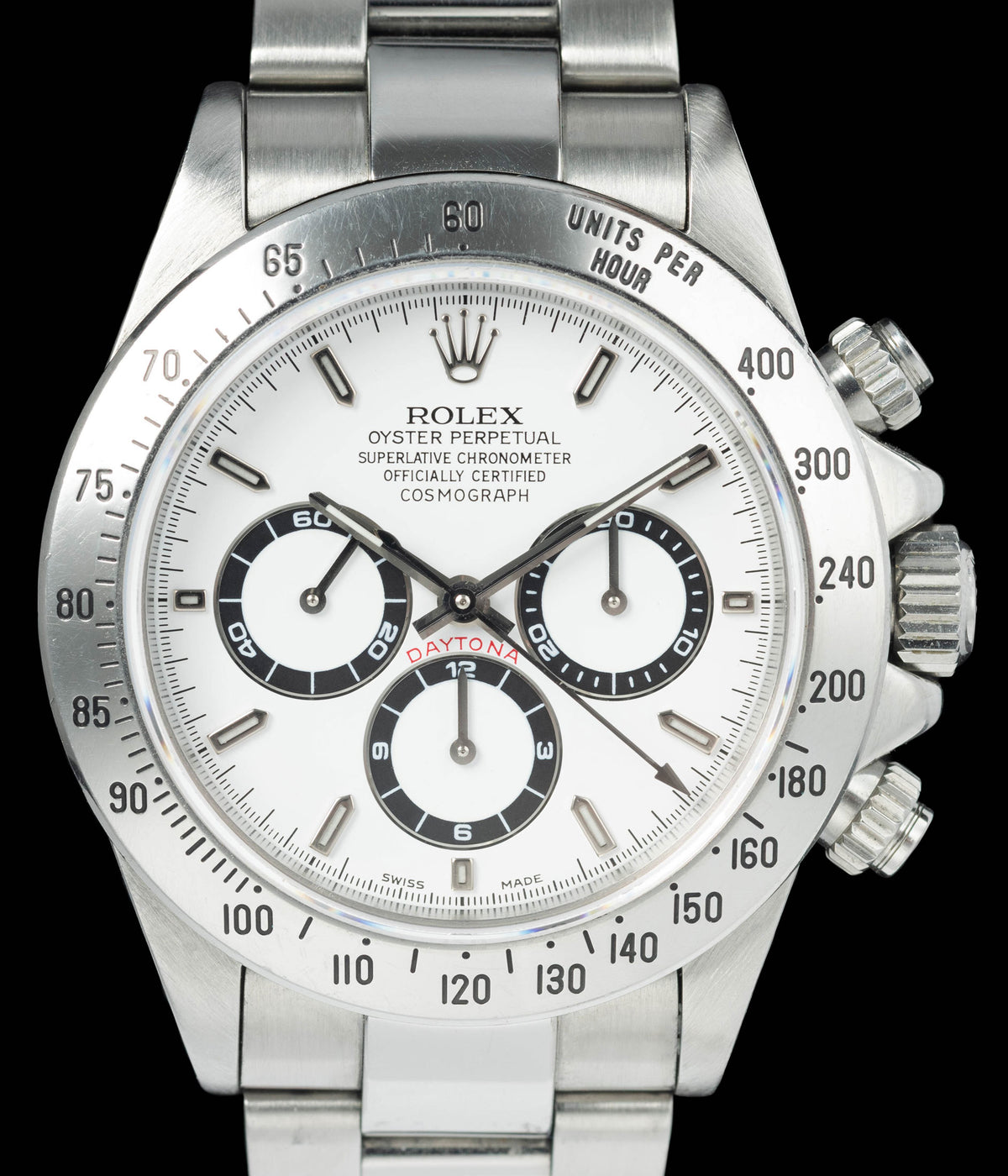

On a white dial the layout is at its most legible. The three subdials, running seconds at nine, thirty minute counter at three and twelve hour counter at six, stand out against the white ground, so each register reads clearly at a glance. It is the contrasting format the 6239 introduced, carried into the automatic era.

The End of the Zenith Era

In 2000 Rolex introduced the reference 116520 with the calibre 4130, its own chronograph movement built entirely in house. That made the 16520 the only automatic Daytona built around another manufacture’s movement, and a 1999 example comes from the closing stretch of that partnership.

Final Thoughts

We love the 1999 Daytona 16520 because it records the moment two of Switzerland’s great chronograph traditions met in one case. The El Primero supplied the automatic chronograph architecture, Rolex rebuilt it to its own specification, and the Oyster case gave it the 40mm proportions, crown guards and sapphire crystal that the Daytona has kept ever since. The white dial shows off the Cosmograph layout of 1963 at its clearest, and the year places it right at the close of the Zenith chapter.

References

1. Bob’s Watches, Minute Details: The Rolex Daytona ref. 16520: <u>https://www.bobswatches.com/rolex-blog/resources/minute-details-rolex-daytona-ref-16520.html</u>

2. Daytona Info, 1988 to 2000: Zenith Daytona: <u>https://daytonainfo.watch/eras/zenith/</u>

3. Revolution, A Movement in History: The Zenith-driven Rolex Daytona: <u>https://revolutionwatch.com/a-movement-in-history-the-zenith-driven-rolex-daytona/</u>

4. Monochrome Watches, The History of the Rolex Daytona: <u>https://monochrome-watches.com/history-rolex-daytona-chronograph-1963-in-depth-review/</u>

5. Wikipedia, Rolex Cosmograph Daytona: <u>https://en.wikipedia.org/wiki/Rolex_Cosmograph_Daytona</u>

6. Fondation Haute Horlogerie, Zenith El Primero: <u>https://www.hautehorlogerie.org/en/watches-and-culture/watchmaking-scene/watches-and-novelties/el-primero</u>

7. The 1916 Company, Complete History of Rolex Watches: <u>https://www.the1916company.com/blog/rolex-history.html</u>

8. Bob’s Watches, History and Timeline of Rolex Founder Hans Wilsdorf: <u>https://www.bobswatches.com/rolex-blog/history-of-time/hans-wildorf-rolex-founder.html</u>

• Case and bracelet in very good condition, light wear.
• Bezel light hairlines
• Light hairlines on clasp & bracelet

• Dial and hands flawless. Dial is a service dial with a very nice patina.
