Steel, Depth and Silence: The Rolex Sea-Dweller 16600 'SD4K'

There is a particular kind of Rolex that exists entirely without compromise. Not a watch designed to look professional, or to suggest a life lived close to the elements, but one engineered from first principles to operate in conditions that would destroy almost anything else. The Sea-Dweller 16600 is that watch. Produced from 1992 through to 2008, and rated to a depth of 4,000 metres, the 16600 represents the full maturity of a design lineage that Rolex developed in direct partnership with the professional diving industry over more than three decades. A 2001 example sits comfortably in the middle of that production run, a period in which the reference had settled into its definitive form and was being worn by saturation divers in some of the deepest and most demanding working environments on earth.

The Origins of the Sea-Dweller

To understand the Sea-Dweller, it is necessary to understand the problem it was designed to solve. The Submariner, introduced by Rolex in 1953, had established the template for the professional diving watch: a robust Oyster case, a rotating timing bezel, and a water resistance rating that put it well ahead of any general-purpose watch on the market. By the late 1950s and into the 1960s, however, commercial deep-sea diving was advancing rapidly, driven by the offshore oil and gas industry and by military and scientific operations that were pushing divers to depths and durations the Submariner had not been designed to accommodate.

Saturation diving introduced a specific technical problem for watchmakers. In saturation operations, divers live and work under pressure for extended periods, breathing a helium-enriched gas mixture that allows them to descend to extreme depths without the physiological limitations of conventional compressed air. Helium molecules, being significantly smaller than oxygen or nitrogen molecules, penetrate the seals of a conventional watch case during the pressurisation phase of a saturation dive. When the diver decompresses, the helium trapped inside the case expands faster than it can escape through those same seals, and the resulting pressure differential is sufficient to blow the crystal off the watch entirely.

The Helium Escape Valve

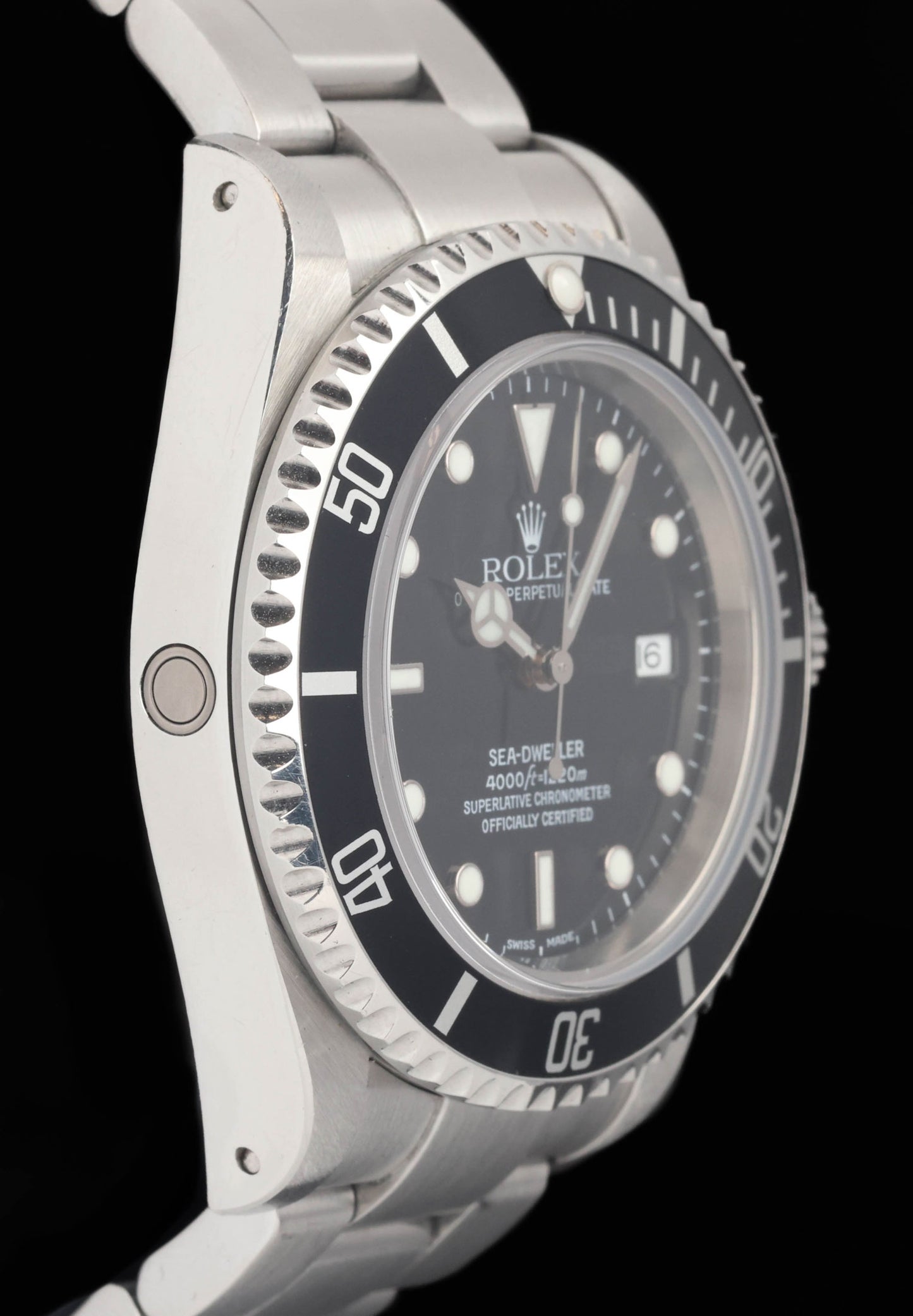

Rolex addressed this problem in collaboration with COMEX, the French underwater engineering company that was at the forefront of commercial saturation diving in the 1960s. The solution was a patented helium escape valve, a small unidirectional release mechanism built into the case at the nine o'clock position that allows helium to escape during decompression without admitting water. This single innovation is the defining technical distinction between the Sea-Dweller and the Submariner, and it transformed what would otherwise have been a marketing specification into a genuine functional difference with life-safety implications for professional divers.

The first Sea-Dweller references, the 1665 introduced in 1967, carried the escape valve alongside a water resistance rating of 610 metres, later revised to 2,000 feet. Rolex developed the design progressively through the 1970s and 1980s, deepening the water resistance rating and refining the case architecture until the 16600 arrived in 1992 with a rating of 4,000 metres, the specification that gave the reference its SD4K nickname and placed it at the absolute frontier of production diving watch capability.

The 16600 in Context

The Sea-Dweller 16600 succeeded the reference 16660, itself known colloquially as the 'Triple Six', which had introduced the 4,000-metre rating and the double-sealed crown in 1978. The 16600 retained those core specifications while updating the case and movement to the standards Rolex was applying across its professional line in the early 1990s. The result was a watch that looked largely continuous with its predecessors but incorporated meaningful engineering refinements throughout, and which would remain in production essentially unchanged for sixteen years.

At 40 millimetres the 16600 shares its case diameter with the Submariner of the same era, but the two watches wear quite differently on the wrist. The Sea-Dweller case is thicker, a consequence of the reinforced architecture required to withstand pressures at depth, and the absence of a cyclops lens on the crystal gives the watch a flatter, more industrial profile that reads as purposeful rather than elegant. The cyclops, a standard feature on date-equipped Rolex sports watches, was omitted from the Sea-Dweller on the grounds that the magnifying lens would create an optical distortion at depth and represented an unnecessary complication in a case designed to withstand extreme pressure differentials. It is one of the details that most clearly signals the Sea-Dweller's professional orientation.

The SD4K Designation

The SD4K nickname, used by the collector community and the trade to distinguish the 16600 from its predecessors and from the Sea-Dweller Deep Sea that followed, refers directly to the 4,000-metre water resistance rating marked on the dial. The full dial text reads 'SEA-DWELLER 4000' in the lower register, a departure from the hierarchy used on earlier Sea-Dweller references, and the rating itself is expressed in both metres and feet, a nod to the international operational contexts in which the watch was intended to serve. Few production watches at any point in horological history have carried a depth rating of this magnitude, and in 2001 the 16600 remained one of a very small number capable of it.

Technical Specifications

Case and Crystal

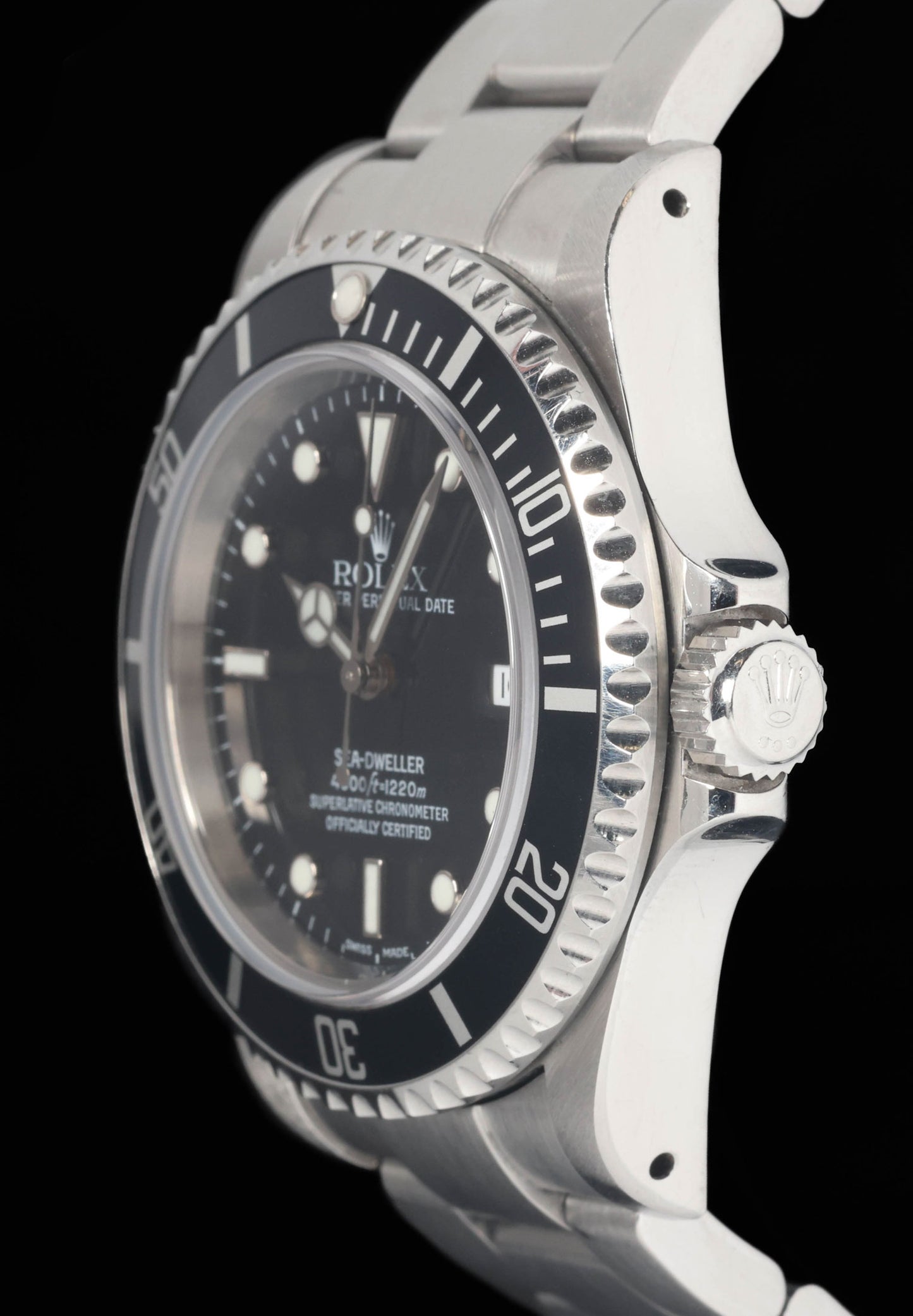

The case of the 16600 is machined from 904L stainless steel in the three-piece Oyster configuration, with a screwdown caseback and a double-sealed Triplock winding crown at the three o'clock position. The Triplock crown, identifiable by the three dots marked on its side, incorporates three independent sealing zones and was developed specifically for the Sea-Dweller line to provide water resistance beyond the capability of the standard Twinlock crown used on the Submariner. The crown screws down directly into the case with a protective crown guard, a design choice that reflects the Sea-Dweller's professional brief and distinguishes it visually from the Submariner's flanked crown architecture.

The crystal is flat sapphire, anti-reflective coated, and sits flush with the bezel surround without the cyclops magnification lens present on other date-equipped Oyster references. The flat profile and the visual clarity of the unmodified crystal give the dial an immediacy and legibility that suits the watch's operational character. The case thickness across a 2001 example is appreciably greater than that of a contemporary Submariner, a direct consequence of the case construction required to maintain integrity at extreme depth, and it gives the Sea-Dweller a solidity on the wrist that is unlike any other standard-production Rolex of the period.

Bezel

The bezel is a unidirectional rotating timing bezel, graduated across 60 minutes in the convention established by the Submariner and adopted across all professional diving watches. The bezel insert on the 16600 is black, applied in aluminium, with the first 15 minutes picked out in red as a standard safety convention allowing divers to calculate remaining bottom time at a glance. The bezel action is firm and precise, indexed in one-minute increments, and the unidirectional rotation ensures that any accidental movement of the bezel during a dive can only result in a shorter calculated bottom time rather than a longer one, a deliberate and important safety feature.

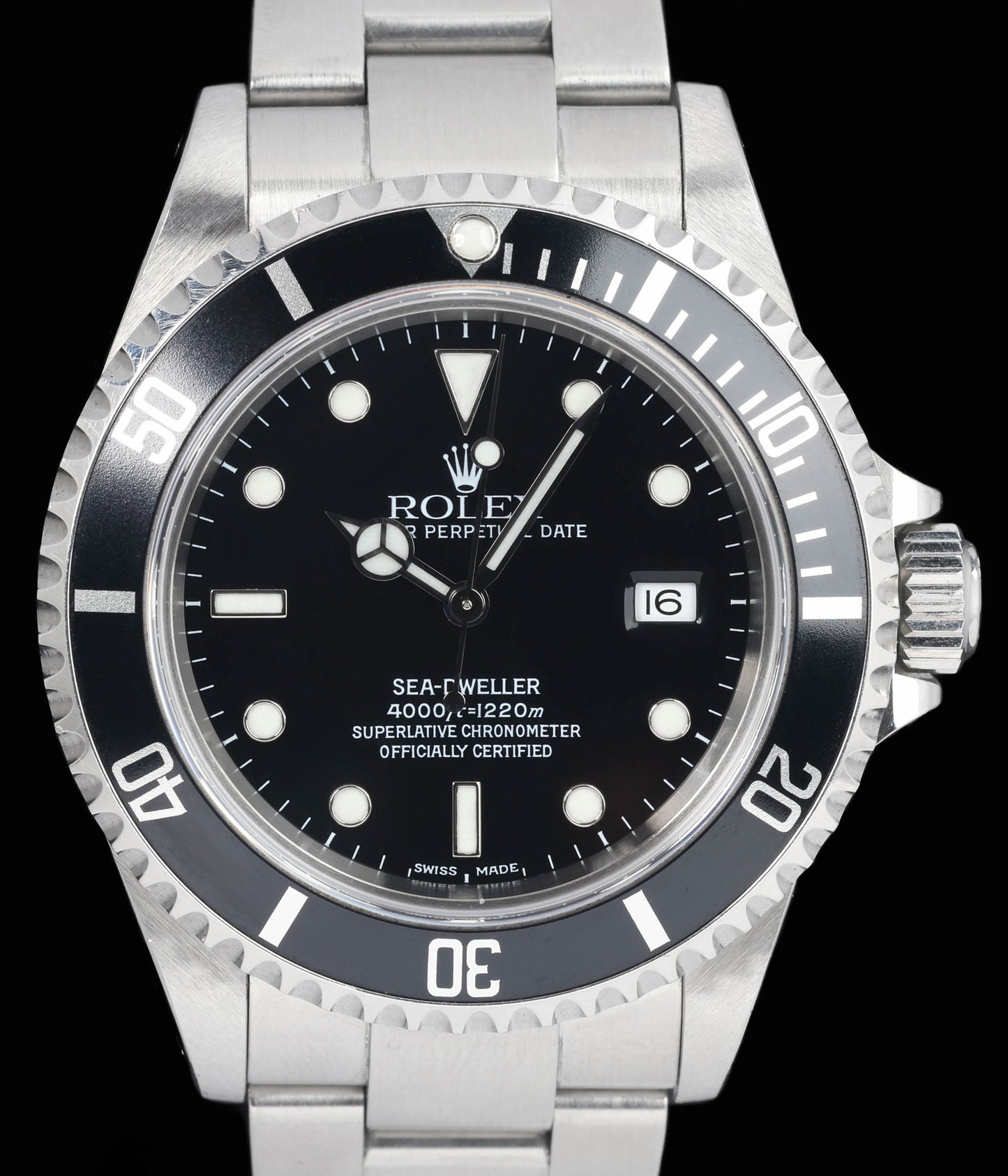

Dial and Hands

The dial of a 2001 16600 is matte black with applied white gold hour markers and Maxi-style hands, the broader, more legible hand configuration that Rolex introduced to improve underwater readability. The date aperture at three o'clock is present and correct, covered by a flat sapphire window without magnification as noted above. By 2001, the lume compound on the hour markers and hands is Swiss Super-LumiNova, presenting in cream or ivory tones that provide strong illuminated legibility in low-light and underwater conditions.

The dial text is unambiguous and purposeful in the manner of all serious tool watches: 'ROLEX OYSTER PERPETUAL DATE' in the upper register, 'SEA-DWELLER 4000' in the lower, with the depth rating expressed in both metres and feet below the central hand stack. There is no surplus text, no decorative element, and no concession to aesthetics that is not simultaneously a concession to function. It is one of the most direct and honest dial layouts in the Rolex catalogue.

Movement

The calibre powering the 16600 is the 3135, a manufacture automatic that represents the benchmark of Rolex movement production during this era. Beating at 28,800 vibrations per hour with a power reserve of approximately 48 hours, the 3135 incorporates a Parachrom hairspring in blue Nivarox alloy, offering enhanced resistance to magnetic fields and shock across the temperature range encountered in professional diving operations. The movement also features the Rolex quickset date mechanism, allowing the date to be advanced independently without cycling the hands through twelve-hour increments. The 3135 is housed behind a solid screwdown caseback, consistent with the Sea-Dweller's water resistance architecture and with Rolex's approach to the Oyster Professional line throughout this period.

Final Thoughts

The Sea-Dweller 16600 occupies a precise and unrepeatable position in the history of the dive watch. It is the reference in which the Sea-Dweller concept reached its full technical maturity under the architecture that Rolex had been developing since the 1960s, and it is the last Sea-Dweller to carry that history in a 40-millimetre case before the platform expanded with the introduction of the Sea-Dweller Deep Sea in 2008 and the return of the 43-millimetre Sea-Dweller in 2017. A 2001 example captures the reference at its most settled and confident: a watch that had nothing left to prove, built to a specification that the vast majority of the world's oceans would never be deep enough to test.

• Case & bracelet in excellent unpolished condition.
• Light hairlines visible

• Dial & hands flawless
